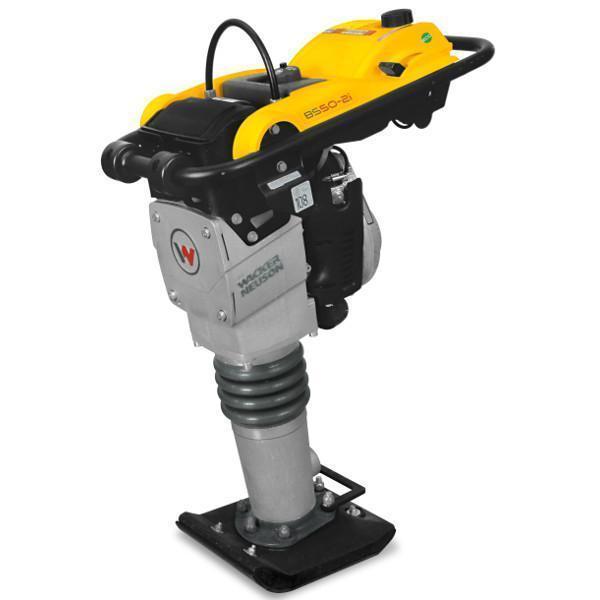

The Wacker Neuson BS60-2i is a high-performance trench rammer designed for efficient soil compaction in confined spaces. Ideal for construction professionals, it offers robust durability and exceptional compaction capabilities, making it suitable for various applications, including trench work and backfilling operations.
Featuring a compact and slim design, the BS60-2i is engineered for easy manoeuvrability in narrow trenches. Its low centre of gravity enhances stability during operation, minimising user fatigue. The machine's robust construction ensures longevity, with components designed to withstand demanding job sites.
| Specification | Details |
|---|---|
| Operating Weight | 145 lb (66 kg) |
| Ramming Shoe Size (WxL) | 11 x 13 in (280 x 330 mm) |
| Dimensions (LxWxH) | 26.5 x 13.5 x 38 in (673 x 343 x 965 mm) |
| Percussion Rate (max.) | 700 blows/min |
| Stroke at the Ramming Shoe | 3.12 in (79 mm) |
| Operating Speed | 32.1 ft/min (9.8 m/min) |
| Surface Capacity | 1,765.3 ft²/h (164 m²/h) |
| Engine Model | Wacker Neuson WM80 |
| Displacement | 4.88 in³ (80 cm³) |
| Fuel Consumption | 0.31 US gal/h (1.17 L/h) |
| Fuel Tank Capacity | 3.17 US qt (3 L) |
| Oil Tank Capacity | 1.37 US qt (1.3 L) |
| Fuel-to-Oil Ratio | 120:1 |
| Part Number | 5200000646 |
The BS60-2i delivers outstanding compaction performance, achieving high impact force and travel speed, which enhances productivity on the job site. Operators benefit from its ergonomic design and reduced hand-arm vibration, enabling extended use with minimal fatigue. The efficient air filtration system and automatic idle shutoff contribute to reduced maintenance requirements and operational costs.
Q: What type of fuel does the BS60-2i require?
A: The BS60-2i operates on gasoline and uses an automatic oil injection system, eliminating the need for pre-mixing fuel and oil.
Q: How often should the air filter be serviced?
A: Regular inspection and maintenance of the air filter are recommended to maintain optimal performance, especially in dusty environments.
Q: Does the BS60-2i have an automatic shutdown feature?
A: Yes, the rammer automatically shuts off after an extended idle period to conserve fuel and reduce emissions.
Q: Is the BS60-2i suitable for use in confined spaces?
A: Yes, its compact design and narrow shoe width make it ideal for trenching and other tight spaces.
