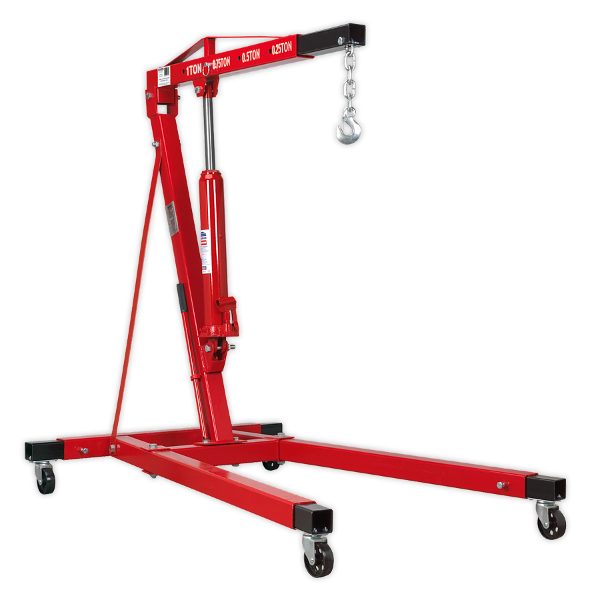

Crane Sealey SC10LR Long Reach 1tonne

Crane Yankee 1tonne Long Reach

• Delivered in knock-down form for reduced freight cost.
• Heavy-duty front and rear castors are on extendable arms to give improved stability, particularly when operating at maximum jib extension of 1930mm.
• Side pump access with removable handle.

Specifications

• Make: Sealey
• Model No.: SC10LR
• Lifting Cap in Position 1: 1000kg
• Lifting Cap in Position 2: 750kg
• Lifting Cap in Position 3: 500kg
• Lifting Cap in Position 4: 250kg
• Maximum Lift Ht at Minimum Jib Extn: 2000mm
• Maximum Lift Ht at Maximum Jib Extn: 2500mm
• Length of Jib Position 1: 1210mm
• Length of Jib Position 2: 1450mm
• Length of Jib Position 3: 1690mm
• Length of Jib Position 4: 1930mm
• Height of Frame: 190mm
• Length of Frame: 1560-2120mm
• Overall Height: 1500mm
• Maximum Width of Frame: 800-950mm
• Width Inside Frame: 700-850mm
• Distance between Rear Wheel Centres: 820-1220mm
• Weight: 120kg
• For Warranty see: Sealey Warranties
• Standard delivery: 1-2 days
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
