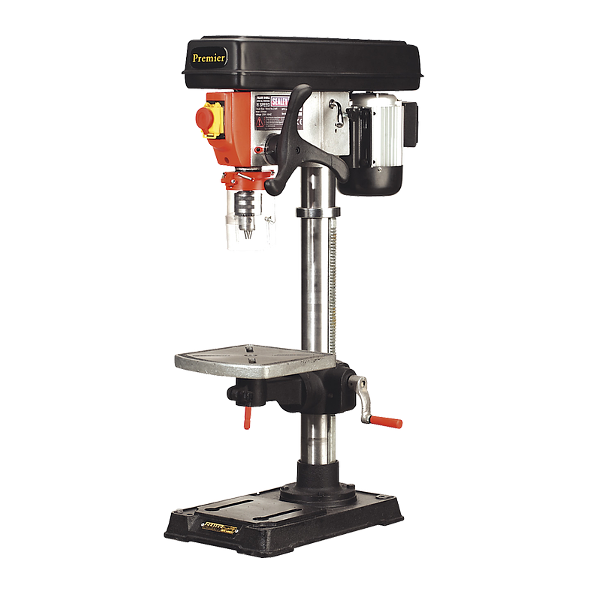

Sealey PDM125B 16-Speed Bench Pillar Drill

Bench Pillar Drill Sealey PDM125B 16-Speed Product code: SEA1222 £534.21  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


Pillar Drill Bench Premier 16-Speed 1050mm Height 230V

  • One of a comprehensive range of bench pillar drills for the professional workshop.
  • Meets latest CE Machinery Directive 98/37/EC, Low Voltage Safety Directive 79/23/EEC and EMC Directive 89/336/EEC.
  • Features heavy-duty aluminium-bodied motor for long and reliable performance.
  • Electrical circuitry protected with no-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open.
  • Supplied with flip-up chuck guard.
  • Large sized square table fitted with precision rack and pinion height adjustment.


    • Make: Sealey
    • Model No:PDM125B
    • Drilling Capacity (Chuck Size):16mm
    • Spindle Nose Taper:MT2
    • Swing:403mm
    • Distance Centre Chuck to Upright Face:165mm
    • Spindle Travel:80mm
    • No. of Speeds:16
    • Speed Range:190-3000rpm
    • Max. Distance Spindle to Table:485mm
    • Max. Distance Spindle to Base:700mm
    • Working Table Surface Size:254 x 254mm
    • Working Base Surface Size:205 x 200mm
    • Overall Base Size:450 x 270mm
    • Column Diameter:73mm
    • Collar Diameter:55mm
    • Overall Height:1050mm
    • Nominal Motor Power:370W/230V
    • Maximum Motor Power:550W/230V
    • Weight:52Kg
    • Keyless Chuck 16mm (Optional) Model No: PDM/KC
    • For Warranty see: Sealey Warranties
    • Standard delivery:2-3 days
