Product Information

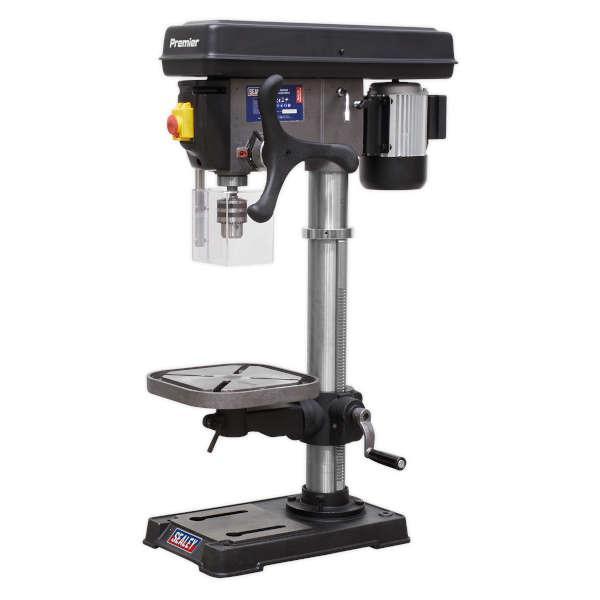

Pillar Drill Bench Premier 16-Speed 1050mm Height 230V

One of a comprehensive range of bench pillar drills for the professional workshop. Meets latest CE Machinery Directive 98/37/EC, Low Voltage Safety Directive 79/23/EEC and EMC Directive 89/336/EEC. Features heavy-duty aluminium-bodied motor for long and reliable performance. Electrical circuitry protected with no-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process. Supplied with flip-up chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.

Specifications

• Make: Sealey
• Model No:PDM155B
• Drilling Capacity (Chuck Size):16mm
• Spindle Nose Taper:MT2
• Swing:460mm
• Distance Centre Chuck to Upright Face:190mm
• Spindle Travel:80mm
• No. of Speeds:16
• Speed Range:190-3000rpm
• Max. Distance Spindle to Table:475mm
• Max. Distance Spindle to Base:660mm
• Working Table Surface Size:290 x 290mm
• Working Base Surface Size:205 x 200mm
• Overall Base Size:495 x 290mm
• Column Diameter:80mm
• Collar Diameter:60mm
• Overall Height:1050mm
• Nominal Motor Power:370W/230V
• Maximum Motor Power:550W/230V
• Weight:62KgInstructions
• Keyless Chuck 16mm (Optional) Model No: PDM/KC
• Integral Work Light
• For Warranty see: Sealey Warranties
• Standard delivery:2-3 days
