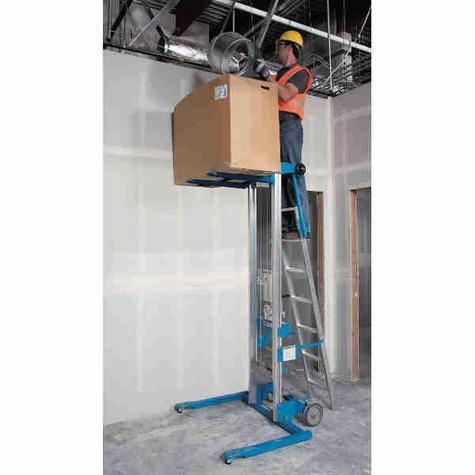

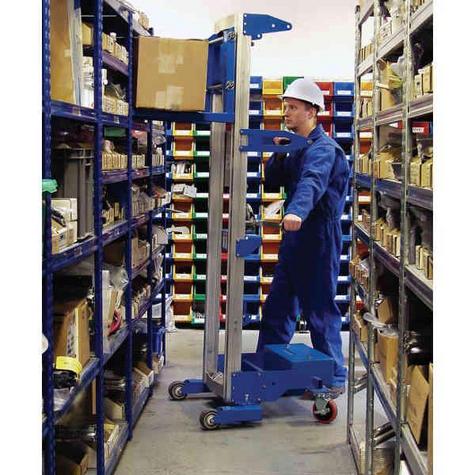

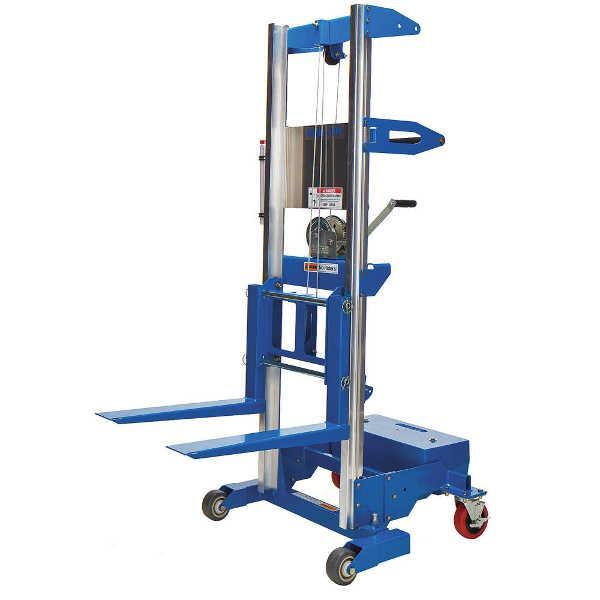

The Genie GL-4 Material Lift with Counterweight Base is a versatile and compact lifting solution designed for various material handling applications. With a maximum lift height of 1.80 meters and a load capacity of up to 227 kilograms, it facilitates efficient lifting and positioning of materials in industrial and commercial settings.
Constructed with lightweight yet durable aluminum, the GL-4 ensures easy maneuverability without compromising strength. The counterweight base design allows the lift to access loads on countertops or shelves above fixed objects, making it ideal for tasks requiring close access. Its compact dimensions enable passage through standard single doorways, enhancing its utility in confined spaces.
| Specification | Details |
|---|---|
| Model | GL-4 Counterweight Base |
| Maximum Lift Height | 1.80 meters (5 ft 11 in) |
| Load Capacity | 227 kilograms (500 lbs) |
| Stowed Height | 1.72 meters (5 ft 7.5 in) |
| Operating Length | 0.72 meters (2 ft 4.5 in) |
| Stowed Width | 0.73 meters (2 ft 4.75 in) |
| Weight | 178 kilograms (392 lbs) |
The GL-4's counterweight base provides stability during lifting operations, allowing operators to position materials precisely even in tight spaces. Its user-friendly design, including the reversible winch handle and compact frame, ensures efficient operation and easy storage. The lift's ability to be transported in standard vehicles adds to its practicality for various job sites.
Q: What is the primary advantage of the counterweight base on the GL-4?
A: The counterweight base allows the lift to access loads on countertops or shelves above fixed objects, providing close access without the need for extended base legs.
Q: Can the GL-4 fit through standard doorways?
A: Yes, with a stowed width of 0.73 meters, the GL-4 is designed to pass through standard single doorways, enhancing its versatility in various environments.
Q: Is the GL-4 suitable for outdoor use?
A: While primarily designed for indoor applications, the GL-4 can be used outdoors on level surfaces, provided it is protected from adverse weather conditions.
Q: What accessories are compatible with the GL-4?
A: The GL-4 is compatible with various accessories, including load platforms and boom attachments, to accommodate different lifting requirements.
