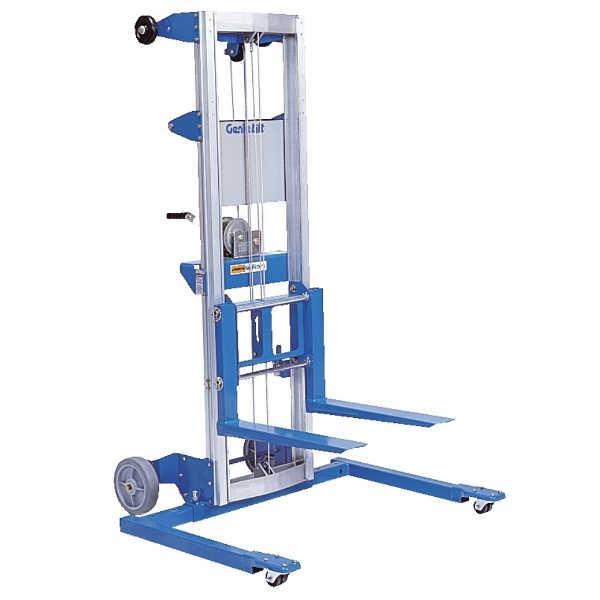

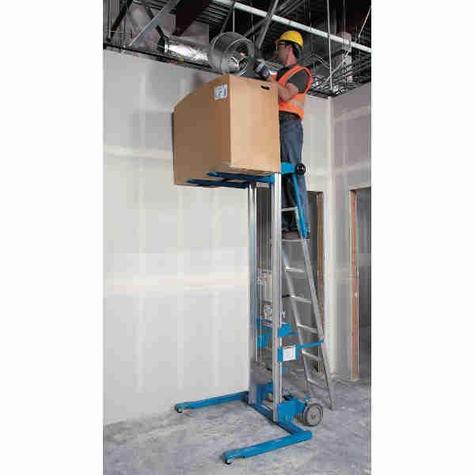

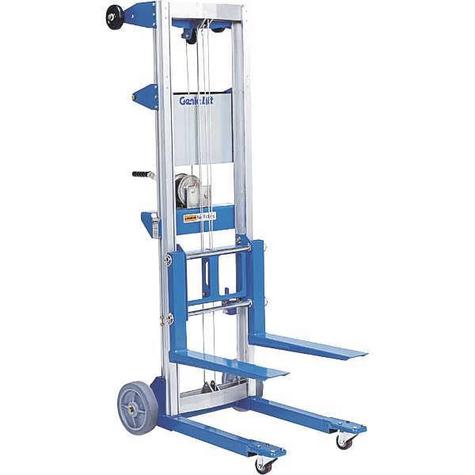

The Genie GL-8 Material Lift with Straddle Base is a versatile manual lift designed to assist in various material handling tasks. With a maximum lifting height of 3.06 meters and a load capacity of 181 kilograms, it is ideal for applications such as loading and unloading operations, HVAC installations, and general material handling in warehouses and construction sites.
Constructed with a telescoping aluminum frame, the GL-8 ensures durability while maintaining a lightweight design for easy maneuverability. The straddle base features adjustable base legs that can straddle loads or fixed objects up to 0.91 meters wide, enhancing its versatility in handling various load types and sizes. Its compact dimensions allow it to pass through standard doorways, facilitating easy transport and storage.
| Specification | Details |
|---|---|
| Model | GL-8 Straddle Base |
| Maximum Lift Height | 3.06 meters (10 ft 0.5 in) |
| Load Capacity | 181 kilograms (400 lbs) |
| Stowed Height | 1.72 meters (5 ft 7.5 in) |
| Base Width (Stowed) | 0.73 meters (2 ft 4.75 in) |
| Base Width (Maximum) | 1.10 meters (3 ft 7.5 in) |
| Base Width (Inside Maximum) | 0.91 meters (3 ft) |
| Base Length (Operating) | 1.09 meters (3 ft 7 in) |
| Machine Weight | 66 kilograms (145 lbs) |
The Genie GL-8 Material Lift with Straddle Base provides reliable lifting capabilities, allowing operators to handle materials up to 181 kilograms to a height of 3.06 meters. Its user-friendly design, including reversible winch handles and quick setup, ensures efficient operation. The adjustable straddle base enhances versatility, enabling the lift to accommodate various load sizes and shapes, making it a valuable tool in diverse material handling applications.
Q: What types of materials can the Genie GL-8 lift?
A: The GL-8 is suitable for lifting a variety of materials, including heavy boxes, equipment, and supplies, making it ideal for loading and unloading operations, HVAC installations, and general material handling tasks.
Q: How does the straddle base benefit the user?
A: The adjustable straddle base allows the lift to straddle loads or fixed objects up to 0.91 meters wide, providing flexibility in handling various load sizes and enhancing stability during lifting operations.
Q: Is the Genie GL-8 easy to transport between job sites?
A: Yes, its compact design allows it to fit through standard doorways and be loaded into a pickup truck or service van for easy transport between locations.
Q: Are there accessories available for the Genie GL-8 to enhance its functionality?
A: Yes, optional accessories such as load platforms, boom attachments, and aluminum ladders are available to increase the versatility of the GL-8 for various applications.
