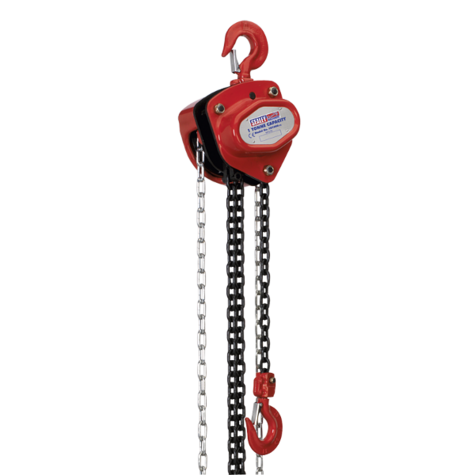

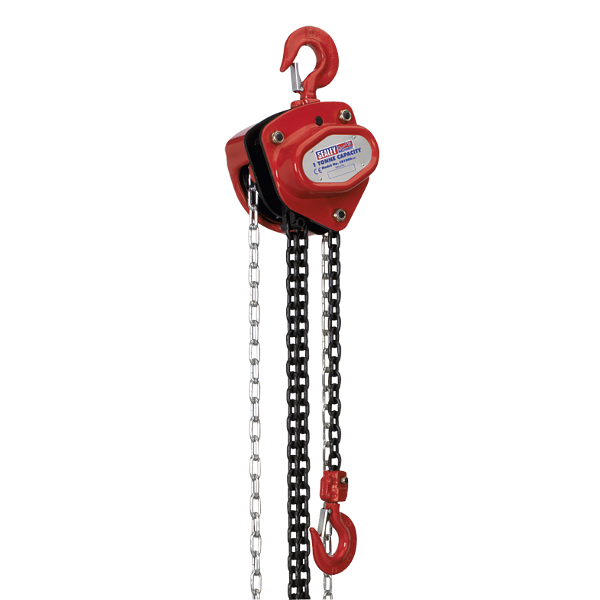

The Sealey CB1000 is a robust chain block designed for lifting applications in workshops, garages, and industrial environments. With a safe working load of 1 tonne and a standard lift height of 2.5 metres, it ensures precise and controlled lifting of heavy loads.
Constructed with a compact gear housing, the CB1000 is suitable for operations where headroom is limited. The unit features a heat-treated and ground, triple-spur geared shaft and pinion, ensuring durability and smooth operation. The load chains are manufactured from hardened alloy material, and the load hooks are equipped with safety latches for secure lifting.
| Specification | Details |
|---|---|
| Model Number | CB1000 |
| Safe Working Load | 1000kg |
| Test Load | 1500kg |
| Standard Lift | 2.5 metres |
| Load Chain Diameter | 6mm |
| Pulling Effort | 284N |
| Head Room | 383mm |
| Hook Aperture | 27mm |
| Maximum Hook Capacity Diameter | 40mm |
| Weight | 11.5kg |
The Sealey CB1000 delivers consistent and reliable lifting performance. Its mechanical load brake ensures that loads are held securely during lifting, providing peace of mind to operators. The compact design allows for use in confined spaces, and the hardened alloy chains contribute to the unit's overall durability and longevity.
Q: What is the maximum weight the Sealey CB1000 can lift?
A: The CB1000 has a safe working load of 1000kg, with a test load capacity of 1500kg.
Q: Can the CB1000 be used in areas with limited headroom?
A: Yes, the compact gear housing design allows for operation in spaces where headroom is restricted.
Q: Does the chain block come with safety features?
A: Absolutely, it includes a mechanical load brake for secure lifting and load hooks with safety latches to prevent accidental release.
