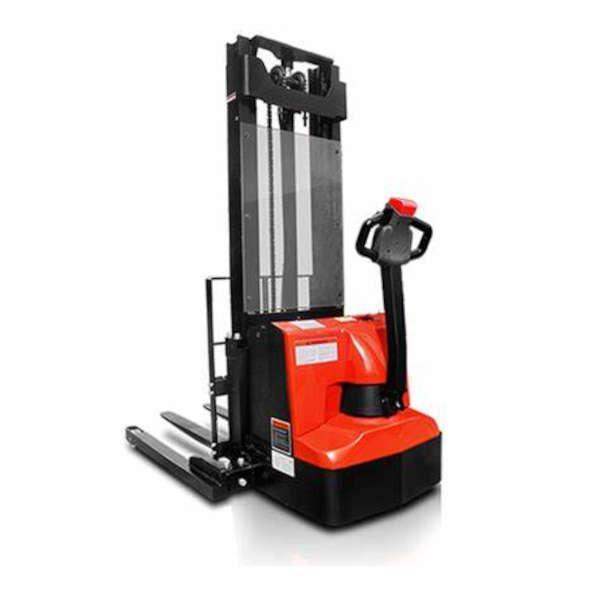

Powered Wrapover Stacker WARRIOR WRESL122 3.6 1200kg - Li-Ion Batteries

£4812.98
Powered Wrapover Stacker WARRIOR WRESL122 3.6 1200kg - Li-Ion Batteries Product code: EUR1060 £4812.98  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

ESL122 3.6   WARRIOR Powered Wrapover Stacker - 1200kg - Li-Ion Batteries

  • Electric Stacker 1.6T
  • Strong chassis
  • Rigid mast
  • Easy operation
  • Efficient hydraulic system
  • Strong chassis: The side impact beam, plates, and boxes make the chassis stronger and can greatly reduce stress and deformation caused by heavy load
  • Rigid mast: The rigidity of the mast is greatly improved by its beam structure to provide smooth lifting and stacking for daily operation.
  • Easy operation: The extra-long and offset tiller with the crawl speed button provides ESL122 a better visibility and nimble maneuverability when operating in tight space.
  • Efficient hydraulic system: High quality hydraulic pump ensures very little noise, maximum efficiency, durability and shortens lifting time

Distinguishing mark

  • Manufacturer EP
  • Model designation ESL122
  • Drive unit electrics
  • Operator type pedestrian
  • rated capacity Q t 1.6
  • Load center distance c mm 600
  • Load distance centre of drive axle to fork x mm 798
  • Wheelbase y mm 1212

Weight

  • Service weight include battery kg 570
  • Axle loading, laden driving side/loading side kg 650/1120
  • Axle loading, unladen driving side/loading side kg 430/140

Types,Chassis

  • Tyre type Driving wheels/Loading wheels PU/PU
  • Tyre size, driving wheels diameter×width mm Ø210×70
  • Tyre size, loading wheels diameter×width mm Ø74×72
  • Tyre size, caster wheels diameter×width mm Ø130×55
  • Wheels, number driving caster/loading (x=drive wheels) mm 1x +1/4
  • Track width, front,driving side b10 mm 531
  • Track width,rear,loading side b11 mm 405

Dimensions

  • Height, mast lowered h1 mm 1956
  • Lift height h3 mm 3600
  • Height, mast extended h4 mm 3271
  • Height drawbar in driving position min./max. h14 mm 750/ 1340
  • Lowered height h13 mm 85
  • Overall length l1 mm 1713
  • Length to face of forks l2 mm 563
  • Overall width b1 mm 792
  • Fork dimensions s/ e/ l mm 60/ 170/ 1150
  • Fork carriage width b3 mm 680/770
  • Distance between fork-arms b5 mm 570/685
  • Ground clearance, center of wheelbase m2 mm 25
  • Aisle width for pallets 1000 × 1200 crossways Ast mm 2224
  • Aisle width for pallets 800 × 1200 lengthways Ast mm 2158
  • Turning radius Wa mm 1390

Performance data

  • Travel speed, laden/ unladen Km/h 4.2/4.5
  • Lifting speed, laden/ unladen m/ s 0.10/0.14
  • Lowering speed, laden/ unladen m/ s 0.10/0.10
  • Max. gradeability, laden/unladen % 4/10
  • Service brake type Electromagnetic

Electric-engine

  • Drive motor rating S2 60 min kW 0.75
  • Lift motor rating at S3 15% kW 2.2
  • The maximum allowed size battery mm 275x190x365
  • Battery voltage/nominal capacity K20 V/ Ah 1x24/80
  • Battery weight kg 27.5

Addition data

  • Type of drive unit DC
  • Steering type Mechanical
  • Sound pressure level at the driver’s ear dB (A) 74
