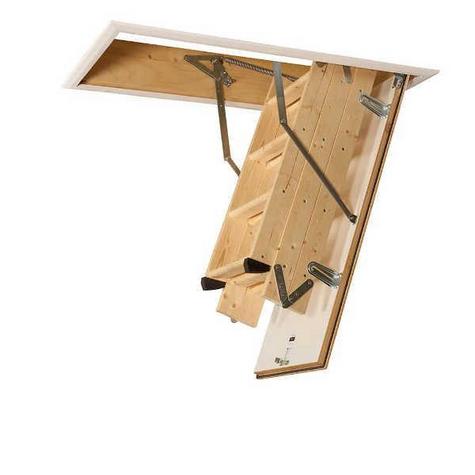

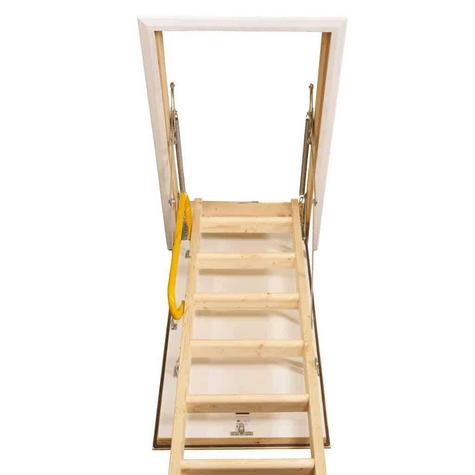

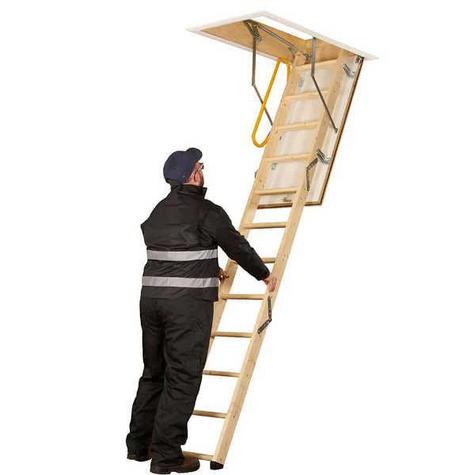

Loft Ladder TBDavies 1530-40 Fire Fold 60 x 120

£381.08
Loft Ladder TBDavies 1530-40 Fire Fold 60 x 120 Product code: DAV1005 £381.08  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Built to the same standard and specification as the LuxFold, but designed to withstand fire for up to 30 minutes (Ei230) fire rating. Suitable for properties with more than 3 floors or passive houses that require a fire rated loft ladder. Fitted with a continuous seal to keep draughts out. The ladder is fully assembled, just requires final installation tweaks. Timber materials used are certified PEFC and from sustainably managed forests, recycled and controlled sources [PEFC 16-37-2313]. Note, that in testing the fire door reached 45+ minutes before flames breached the door.

Features:

Complies to EN 14975, EN 1368 & EN 1634 (Fire rated to 30 minutes)
Tested U-Value of 0.67W/m2K for greater insulation and reduced heat loss
 60mm deep insulated white trapdoor with metal locking key and double lock for improved draught exclusion and security
27mm thick frame features continuous seal that keeps cool drafts out
Supplied with slip-resistant feet and handrail for extra security
Fully assembled, simply fit into loft aperture
Requires no headroom or storage space in the loft
Manufactured using PEFC sustainably sourced timber & 100% renewable energy

Specifications:

  • Part No.: 530-040
  • Treads: 4
  • Sections: 3
  • Aperture: 1200mm x 600mm
  • Frame Size: 1190mm x 590mm
  • Max. Floor to Ceiling: 2750mm
  • Max. Swing Clearance: 550mm
  • Weight: 27.5kg
