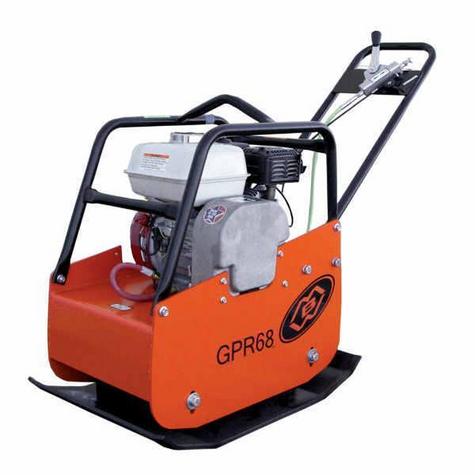

Reversible Plate Compactor MBW GPR68D Diesel 460mm

£4214.19
Reversible Plate Compactor MBW GPR68D Diesel 460mm Product code: MBW1070 £4214.19  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Watch Video

The heavy duty mechanical shifting mechanism allows for directional changes at full speed. Endurance testing was terminated at 400,000 shifts without system failure - the best result MBW (and very likely any manufacturer) has ever achieved on a reversible plate shifting design.

The GPR68 are also high production plates. Travel speeds to 95ft/min are achieved with good compaction conditions and the plates move with ease over irregular lift surfaces.

With eight years of exceptional maintenance history behind the model GPR68, MBW now introduces a similar mechanical shifting design on a larger reversible.

Specifications:

  • Model: GPR68D
  • Engine:Hatz IB20 Diesel
  • Operating Weight:168 KG
  • Plate Size W x L:460mm X 510mm
  • Centrifugal Force: 6000 LBF (27kN)
  • Exciter Speed:4400 VPM
  • Compaction Depth:UP TO 22 IN (56CM)
  • Travel Speed:95FT/MIN (29M/MIN)
  • Compaction Area: 8550 SQFT/H (794 SQM/H)
  • 12 Months Manufacturer’s Warranty
  • Standard delivery 1-2 working days
