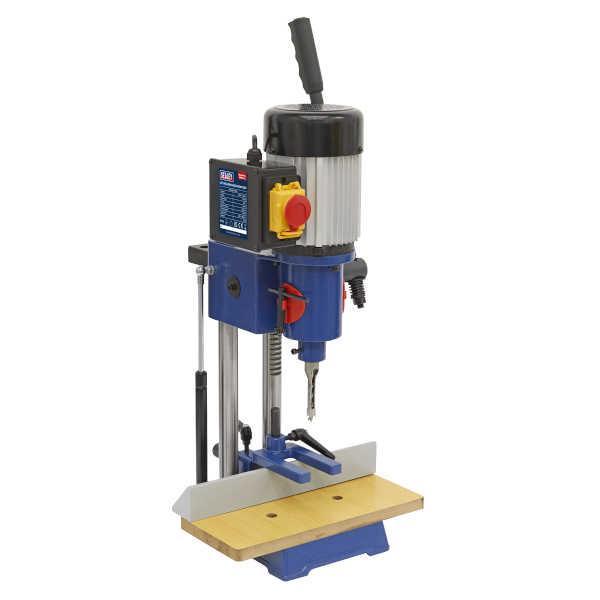

Sealey SM94 Hollow Chisel Mortiser

Hollow Chisel Mortiser 1/2' 230V

• Bench mounting mortising machine suitable for cutting mortises for joints, locks and dead-bolts.
• Twin uprights with hydraulic damper carry head assembly and have adjustable depth stop for repetitive work.
• Integral drill chuck is easily accessible from both sides of the head.
• Powered by heavy-duty induction motor with no-volt release switch to prevent accidental restart after power failure or jam.
• Supplied with arbor extension and 13mm drill chuck for occasional drilling operations.
• Includes table and workpiece clamp assembly.
• Mortising chisels included.

Specifications

• Make: Sealey
• Model No.: SM94
• Chisel Size: 1/4', 3/8', 1/2'
• Chuck: 13mm
• Spindle Travel: 120mm
• Throat Depth: 77mm
• Chisel End-table: 115mm
• Hold Down Capacity: 68mm
• Table Size: 340 x 150mm
• Motor Power: 370W - 230V
• Dimensions (W x D x H): 340 x 355 x 640mm
• Weight: 25kg
• For Warranty see: Sealey Warranties
• Standard Delivery: 2-3 days
