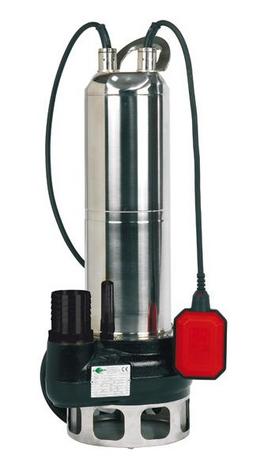

The Dual Pumps Tiger 200 is a high-capacity submersible pump designed for efficiently handling dirty water in demanding environments such as construction sites, agricultural settings, and industrial applications. Operating at 230V, it provides dependable performance for both residential and commercial applications.
Constructed with a combination of AISI 304 stainless steel and cast iron, the Tiger 200 ensures exceptional durability and resistance to corrosion. Its double-chamber design features an oil bath motor, providing effective cooling and lubrication, which enhances the pump's longevity. The compact form factor ensures easy installation in confined spaces.
| Specification | Details |
|---|---|
| Part Number | TGR2002 |
| Power Supply | 230V |
| Motor Power | 1.5 kW (2 HP) |
| Maximum Flow Rate | 500 litres per minute |
| Maximum Head | 12.2 metres |
| Outlet Size | 2" BSP Female |
| Maximum Suspended Solids | 50 mm |
| Maximum Immersion Depth | 5 metres |
| Maximum Liquid Temperature | 50 degreesC |
| Cable Length | 10 metres |
| Dimensions (W x H x L) | 150 mm x 385.5 mm x 232 mm |
| Weight | 14.3 kg |
The Tiger 200 delivers consistent and efficient performance, effectively handling various dirty water transfer tasks. Users appreciate its reliability and ease of operation, particularly the automatic float switch, which minimises the need for manual intervention. The pump's robust construction ensures long-lasting performance, even in demanding conditions.
Q: Is the Tiger 200 suitable for pumping water with suspended solids?
A: Yes, the Tiger 200 is designed to handle dirty water applications, capable of managing suspended solids up to 50 mm in size.
Q: What is the maximum immersion depth for this pump?
A: The pump can be submerged up to a maximum depth of 5 metres.
Q: Does the Tiger 200 come with an automatic float switch?
A: Yes, the Tiger 200 is equipped with an automatic float switch that enables auto stop/start functionality based on water levels.
Q: What type of warranty is provided for the Tiger 200?
A: The warranty for the Tiger 200 is provided by the manufacturer. For specific warranty details, please refer to the manufacturer's warranty policy.
