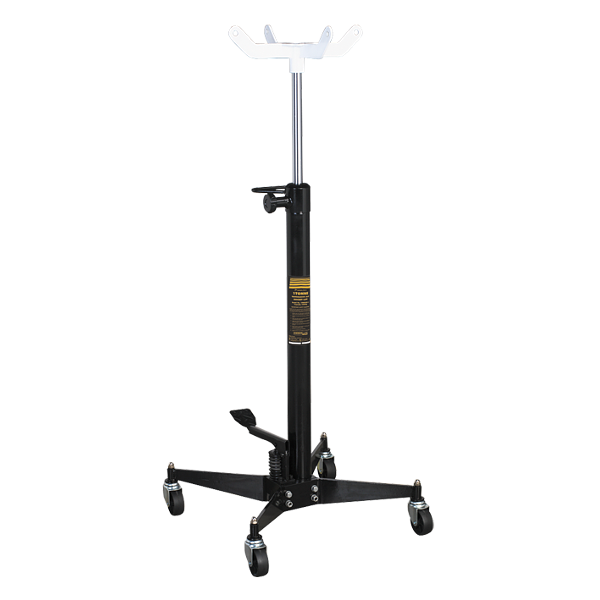

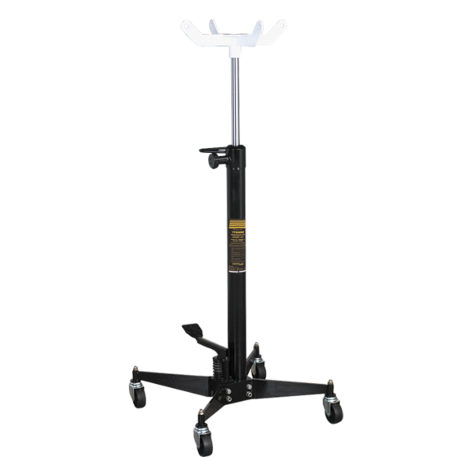

The Sealey 1000TRQ is a high-quality vertical transmission jack designed to facilitate the removal, installation, and transportation of vehicle transmissions and gearboxes. With a lifting capacity of 1 tonne (1000kg), it is ideal for professional automotive workshops and garages.
Constructed with durability in mind, the 1000TRQ features a robust steel frame and a wide base measuring 720 x 640mm, ensuring stability during operation. The jack is equipped with heavy-duty castors and a side handle, enhancing manoeuvrability within the workshop environment. Its advanced lifting system and reversible saddle improve operational efficiency and versatility.
| Specification | Details |
|---|---|
| Model Number | 1000TRQ |
| Capacity | 1 Tonne (1000kg) |
| Minimum Saddle Height | 1140mm |
| Maximum Saddle Height | 1960mm |
| Base Dimensions | 720mm x 640mm |
| Saddle Type | Reversible |
| Lift Mechanism | Hydraulic - Super Rocket Lift |
| Operation | Single Foot Pedal |
| Safety Features | Dead Man's Safety Release Valve |
| Compatibility | Optional Gearbox Support (Model No. ADT5) |
| Net Weight | 44.7kg |
The Sealey 1000TRQ delivers exceptional lifting capability, stability, and control. The Super Rocket Lift system significantly reduces effort, making it faster to bring the saddle into position. Users benefit from safe, hands-free operation thanks to the foot pedal, while the stable base and smooth castors make movement and placement easy. Whether used with or without the optional gearbox support, this jack offers dependable support and improved accuracy during transmission servicing.
Q: How does the Super Rocket Lift help in daily use?
A: It speeds up the lifting process by reducing the number of pumps needed to reach full extension, saving time and effort compared to standard jacks.
Q: Can this jack support components other than gearboxes?
A: Yes, the reversible saddle allows for a jack pad to be fitted, enabling support of various vehicle components in addition to transmissions.
Q: Is this jack compatible with any accessories?
A: It is compatible with the Sealey ADT5 Adjustable Gearbox Support, which improves stability and versatility during more complex jobs.
Q: Is it safe for solo use?
A: Yes. The foot pedal and dead man's safety release allow one-person operation with reliable control, especially useful when working under lifts.
Q: What maintenance is required?
A: Periodic checks for hydraulic fluid levels, saddle wear, and castor mobility are recommended. Lubrication of moving parts and visual inspections will keep the jack performing at its best.
