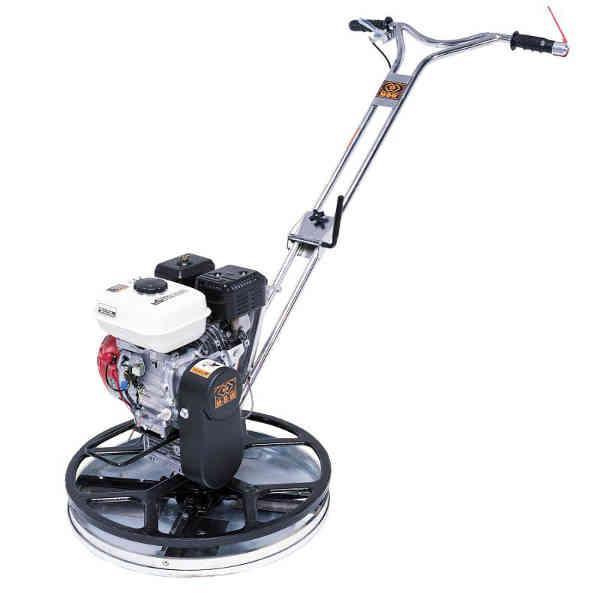

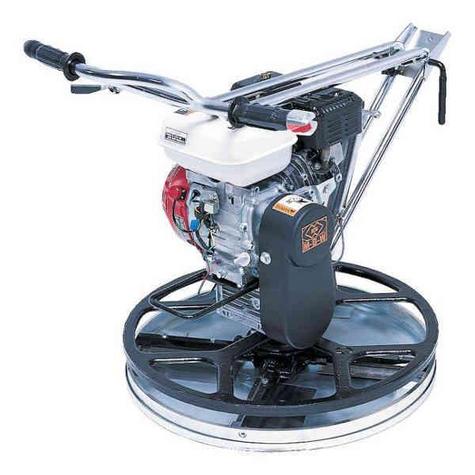

The MBW F24/4H is a highly manoeuvrable 24-inch (600mm) walk-behind edging power trowel, designed for professional concrete finishing in confined spaces and along edges. Powered by the reliable Honda GX120 engine, this trowel delivers consistent performance, making it ideal for applications around walls, columns, and small areas where larger trowels cannot operate.
Engineered with precision, the F24/4H features a rotating guard ring with rubber protection, allowing operators to finish flush against walls without causing damage. The unit's lightweight design, coupled with a unique fold-down handle, ensures easy transportation and storage. Precision bearings and adjustable blade arms contribute to its durable construction and consistent operation.
| Specification | Details |
|---|---|
| Model Number | F24/4H |
| Engine Model | Honda GX120 |
| Engine Power | 3.5 HP (2.6 kW) |
| Operating Weight | 57 kg |
| Ring Diameter | 600 mm |
| Trowel Speed | 50-135 rpm |
| Blade Length | 230 mm |
| Blade Width | 120 mm |
| Blade Thickness | 1.9 mm |
The F24/4H offers exceptional manoeuvrability and control, making it ideal for achieving professional-grade finishes in tight spaces. Its adjustable handle position enhances operator comfort, while the precision-engineered components ensure smooth operation and longevity. The Honda GX120 engine provides reliable power with efficient fuel consumption, contributing to overall productivity on the job site.
Q: What applications is the MBW F24/4H suitable for?
A: The F24/4H is designed for concrete finishing tasks in confined areas, such as edging along walls, around columns, and small slabs where larger trowels are impractical.
Q: How does the rotating guard ring benefit the operator?
A: The rotating guard ring with rubber protection allows the operator to finish flush against walls and obstacles without damaging the machine or the structure.
Q: Is the handle adjustable for different operator heights?
A: Yes, the F24/4H features an adjustable handle position to accommodate operators of varying heights, enhancing comfort and control.
Q: What maintenance is required for the Honda GX120 engine?
A: Regular maintenance includes checking and changing the oil, cleaning or replacing the air filter, and inspecting the spark plug, as outlined in the Honda GX120 user manual.
