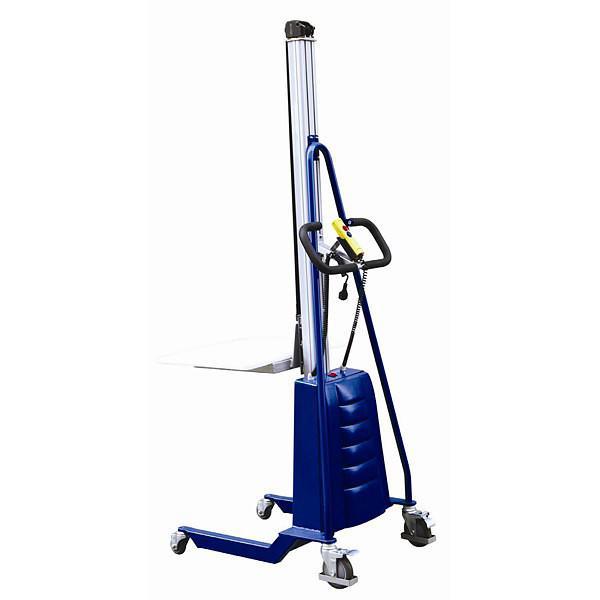

The Warrior Semi Electric Work Positioner is ideal for those lightweight lifting requirements where personnel need protection from lifting everyday items which are judged to be too heavy to lift manually. Reams of paper, Servers, batteries etc... Deemed too heavy for a person to lift!
The unit is mounted on 4 swivel castors allowing the unit to turn easily in confined areas. Lift is by means of an electrically driven belt which allows the operator to elevate the load to a given height at the press of a button. The lift/lower control is on a remote truck mounted/hand held pendant allowing the operator to stand by the load during lifting/lowering.
A platform plate is supplied as standard, however, various attachments are available for pack line applications - e.g.: single boom, twin Boom, V block and a reel rotator.
- Model No. WR100E
- Compact, lightweight and manoeuvrable
- TTE100A with pendant control
- Auto brake system prevents uncontrolled lowering
- Mounted on 4 swivel castors
- Supplied complete with 24v/12A battery and charger
- Conforms to BS EN 1757-2:2001
- Capacity: 100 kg
- Load centre: 235 mm
- Min lift height: 130 mm
- Max lift height: 1700 mm
- Platform: L - 470 mm x W - 600 mm
- O/A height: 1920 mm
- O/A length: 870 mm
- O/A width: 600 mm
- Standard delivery 3-5 working days
- 12 month on site parts and labour warranty
