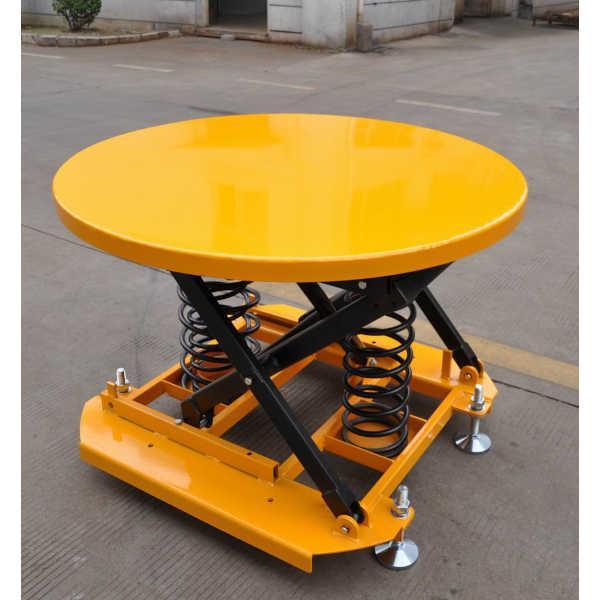

The Warrior WRSPP360-2000 Auto Pallet Leveller is a self-levelling lift table designed to enhance manual handling efficiency in industrial environments. With a load capacity ranging from 200kg to 2000kg, it automatically adjusts its height based on the weight of the load, ensuring an optimal working position and reducing the need for bending or stretching during pallet loading and unloading tasks.
Constructed with a robust steel frame, the WRSPP360-2000 ensures durability and stability under varying loads. The unit features a 360-degree rotating top, facilitating easy access to all sides of the pallet without the need for repositioning. Finished with a powder-coated surface, it offers enhanced resistance to wear and corrosion, making it suitable for demanding industrial applications.
| Specification | Details |
|---|---|
| Model Number | WRSPP360-2000 |
| Load Capacity | 200kg to 2000kg |
| Rotating Ring Diameter | 1110mm |
| Minimum Height | 240mm |
| Maximum Raised Height | 705mm |
| Unit Weight | 150kg |
The WRSPP360-2000 enhances workplace ergonomics by maintaining a consistent, comfortable working height during pallet handling tasks. Its self-levelling feature reduces the physical strain associated with manual loading and unloading, promoting operator well-being and productivity. The 360-degree rotating platform further streamlines operations by providing easy access to all sides of the pallet, minimizing the need for repositioning and reducing handling time.
Q: How does the self-levelling mechanism work?
A: The platform height automatically adjusts based on the weight of the load, utilizing a proven linkage system in conjunction with a special shock absorber to maintain an ergonomic working position.
Q: Can the leveller accommodate different load weights?
A: Yes, the adjustable spring mechanism allows for easy customization to handle various load profiles ranging from 200kg to 2000kg.
Q: Is the rotating top lockable?
A: The 360-degree rotating top is designed for continuous rotation to facilitate easy access to all sides of the pallet; it does not feature a locking mechanism.
Q: What are the dimensions of the rotating platform?
A: The rotating ring has a diameter of 1110mm, accommodating standard pallet sizes.
Q: Does the unit require an external power source?
A: No, the WRSPP360-2000 operates without the need for an external power source, relying on its mechanical self-levelling system.
