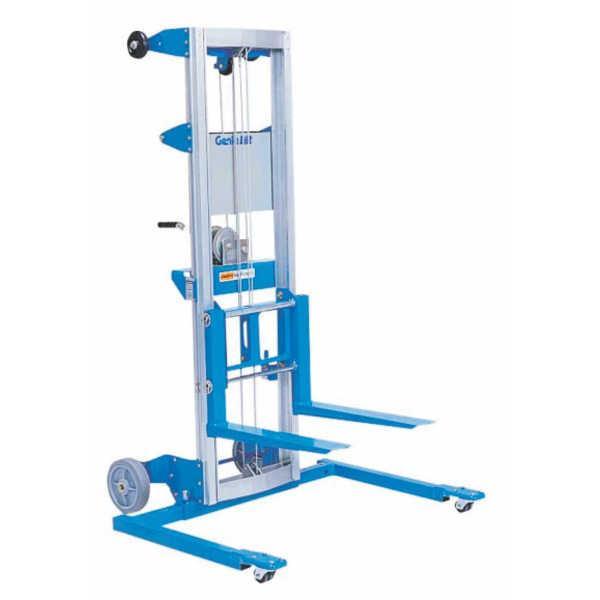

The Genie GL-4 Straddle Base Material Lift is a versatile and portable lifting solution designed for warehouses, construction sites, and industrial applications. With a maximum lifting height of 1.80 meters and a load capacity of 227 kilograms, this lift improves both efficiency and safety in material handling operations.
Constructed with a durable aluminum telescoping mast and a robust steel base, the GL-4 ensures stability and long-lasting performance. The straddle base design features adjustable-width legs, allowing the unit to accommodate wider loads up to 0.91 meters. Its compact and lightweight construction makes it easy to manoeuvre and transport between job sites.
| Specification | Details |
|---|---|
| Model | GL-4 Straddle Base |
| Load Capacity | 227 kg |
| Maximum Lifting Height | 1.80 meters (5 ft 11 in) |
| Stowed Height | 1.72 meters |
| Base Width (Stowed) | 0.73 meters |
| Base Width (Maximum) | 1.10 meters |
| Inside Base Width (Maximum) | 0.91 meters |
| Unit Weight | 57 kg |
| Fork Length | 0.57 meters |
| Fork Width | 0.52 meters |
| Minimum Fork Height (Forks Down) | 0.09 meters |
| Maximum Fork Height (Forks Down) | 1.26 meters |
| Maximum Fork Height (Forks Up) | 1.80 meters |
Q: What are some common applications for the GL-4 Straddle Base?

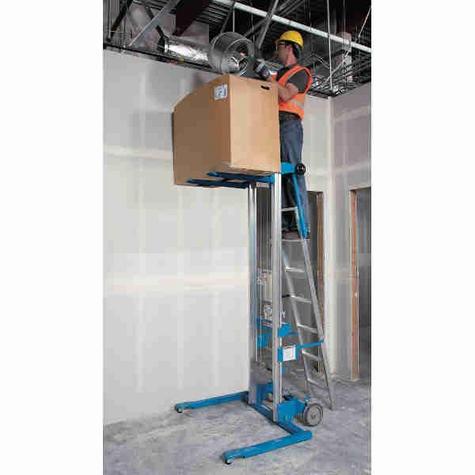

A: This lift is commonly used for material handling in warehouses, construction sites, and maintenance operations where precise positioning and manoeuvrability are essential.
Q: Is the lift easy to transport?
A: Yes, its lightweight construction and compact design make it easy to manoeuvre and transport between job sites.
