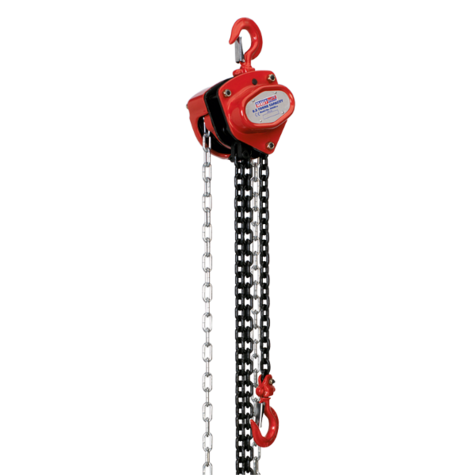

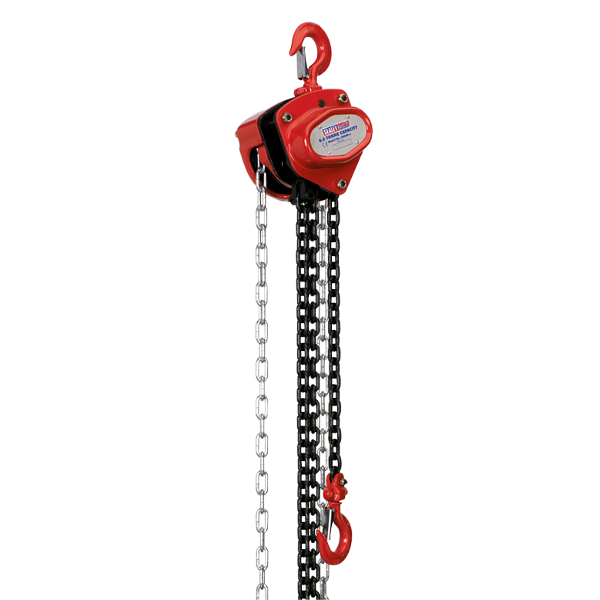

The Sealey CB500 is a compact and reliable chain block designed for lifting up to 0.5 tonnes (500kg). With a 2.5-metre standard lift height, it is ideal for garages, workshops, and industrial environments where precision and safety are critical. This manually operated hoist provides mechanical efficiency and dependable performance in a durable format.
Built with a robust steel gear housing and triple-spur gearing, the CB500 is engineered to withstand repeated use in tough working conditions. The load chain is made from hardened alloy steel for strength and longevity. A compact headroom of just 295mm allows use in confined spaces, and all load-bearing parts are designed for durability and long service life.
| Specification | Details |
|---|---|
| Model Number | CB500 |
| Safe Working Load | 500kg (0.5 Ton) |
| Standard Lift | 2.5 Metres |
| Load Chain Diameter | 6mm |
| Headroom | 295mm |
| Pulling Effort | 23.5kgf |
| Overall Width | 127mm |
| Overall Depth | 131mm |
| Hook Aperture | 25mm |
| Max Hook Diameter | 35mm |
| Weight | 10kg |
Operators benefit from a reliable and responsive lifting tool that maintains high levels of safety and control. The CB500's compact size is advantageous in smaller workspaces, and its mechanical braking system holds loads firmly in place. It's ideal for both static and mobile lifting tasks in mechanical and maintenance operations.
Q: What is the maximum lifting height of the CB500?
A: The standard lifting height is 2.5 metres.
Q: Does the Sealey CB500 include a mechanical brake?
A: Yes, it features a mechanical load brake that automatically engages to hold the load securely when lifting force is released.
Q: Can this be used where headroom is limited?
A: Yes, the compact headroom design of 295mm allows it to be used in confined spaces effectively.
