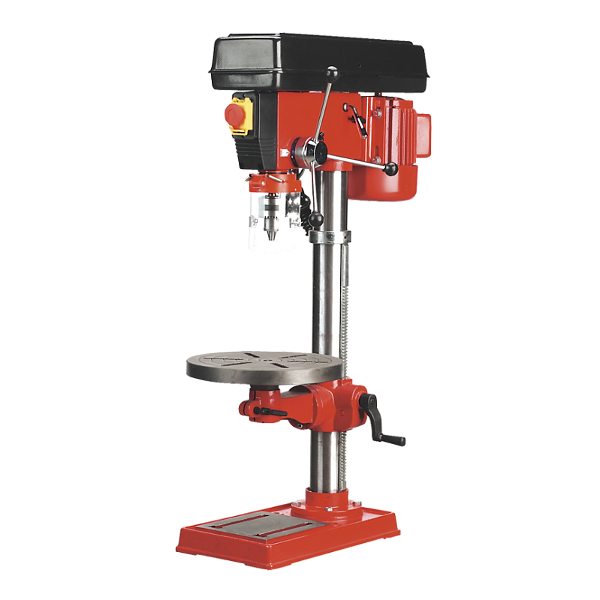

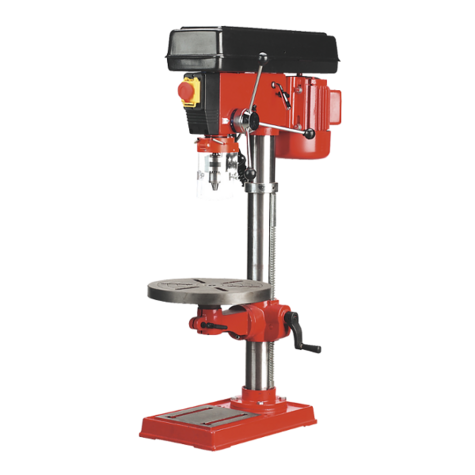

Sealey GDM120B 16-Speed Bench Pillar Drill

Overview

The Sealey GDM120B is a robust bench-mounted pillar drill designed for light industrial, agricultural, and woodworking applications. With its 16-speed settings and sturdy construction, it offers precision and versatility for a wide range of drilling tasks.

Design and Build Quality

Constructed with a solid cast iron base and a 70mm diameter column, the GDM120B ensures stability and minimizes vibration during operation. Its bench-mounted design is ideal for workshops with limited floor space, providing a compact yet powerful drilling solution. The drill features a rack and pinion feed shaft with adjustable preset depth control for repetitive tasks, enhancing efficiency and accuracy.

Key Technologies and Features

• 16-speed belt-driven system ranging from 210 to 3340rpm, accommodating various materials and drill sizes
• 16mm (5/8") capacity chuck with MT2 spindle taper, allowing the use of taper shank drill bits
• Adjustable worktable with a 310mm diameter, capable of tilting for angled drilling operations
• Safety features include a no-voltage release switch and locking cover
• Heavy-duty cast iron base and column for maximum rigidity and minimal vibration

Specifications

Performance and User Experience

The Sealey GDM120B delivers smooth, consistent power and high-precision drilling. Its wide range of speeds makes it suitable for everything from delicate woodworking to tougher metal jobs. The solid column and heavy-duty base keep vibrations low, even under load. The user-friendly controls, tilt-adjustable table, and MT2 spindle taper make it a great choice for serious workshop use.

Q&A Section

Q: Is a chuck key included with this model?

A: Yes, a chuck key is supplied as standard with the GDM120B.

Q: Can it handle stainless steel?

A: Yes, the GDM120B can drill stainless steel with the correct speed setting and high-quality drill bit.

Q: Does the table allow for angled drilling?

A: Yes, the table is fully adjustable and tilts for precise angled drilling tasks.

Q: Can I use taper shank drill bits with this model?

A: Absolutely. The MT2 spindle taper is compatible with taper shank bits, giving you more flexibility.

Q: Is it suitable for professional workshop use?

A: Yes, the GDM120B is designed for light industrial and professional environments, offering excellent reliability and long-term performance.
