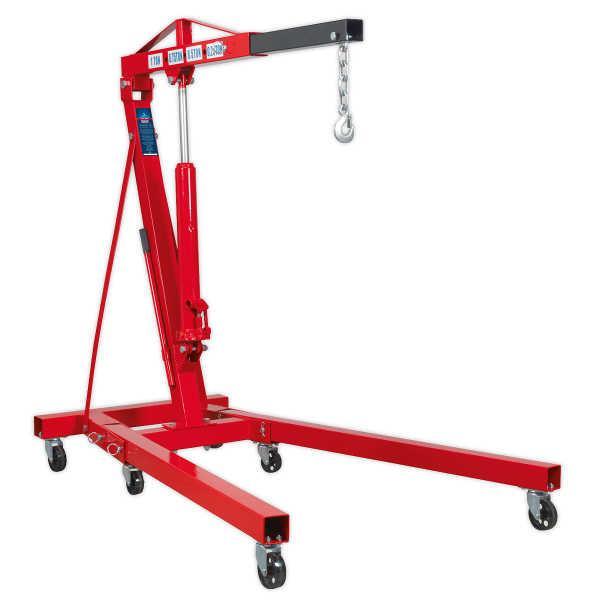

The Sealey SC10 is a versatile and robust 1-tonne folding engine crane, ideal for both professional workshops and home garages. Its fast-folding design ensures easy storage and transportation, making it perfect for environments where space is at a premium. Delivered in knock-down form, some self-assembly is required, offering a balance between cost-effectiveness and functionality.

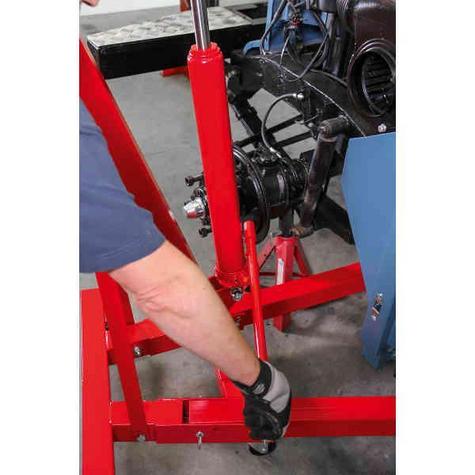

Constructed with a focus on durability and user convenience, the SC10 features a heavy-duty steel frame equipped with sturdy castors for enhanced mobility. The side-mounted hydraulic pump, accessible via a removable handle, allows for efficient lifting operations. Its compact, foldable design ensures that the crane can be stored conveniently when not in use, optimizing workspace efficiency.
| Specification | Details |
|---|---|
| Model Number | SC10 |
| Maximum Lifting Capacity | 1,000 kg |
| Jib Length Positions | 830mm, 950mm, 1070mm, 1190mm |
| Lifting Capacities per Position | 1000kg, 750kg, 500kg, 250kg |
| Maximum Lift Heights per Position | 1820mm, 1935mm, 2030mm, 2150mm |
| Height with Jib Lowered | 1390mm |
| Height with Legs Folded | 1440mm |
| Frame Height | 185mm |
| Extended Leg Length | 1620mm |
| Overall Length | 1620mm |
| Rear Width | 700mm |
| Front Frame Width | 920mm |
| Inside Front Frame Width | 780mm |
| Net Weight | 67kg |
The Sealey SC10 delivers consistent lifting power across a range of vehicle maintenance and industrial tasks. The adjustable jib positions allow users to adapt to different engine sizes and lifting heights, while the durable hydraulic system ensures controlled and safe lifting. Its foldable structure is especially advantageous in garages and workshops with limited floor space, making the SC10 both practical and efficient.
Q: What is the lifting range of the SC10 crane?
A: The SC10 provides four jib positions with maximum lift heights ranging from 1820mm to 2150mm depending on the reach position selected.
Q: Does the SC10 require assembly?
A: Yes, the unit is supplied in knock-down form and requires assembly before use. Assembly instructions are included.
Q: Can the SC10 be used in tight spaces?
A: Yes, thanks to its folding design and swivel castors, the SC10 is ideal for use in confined spaces and can be compactly stored when not in operation.
