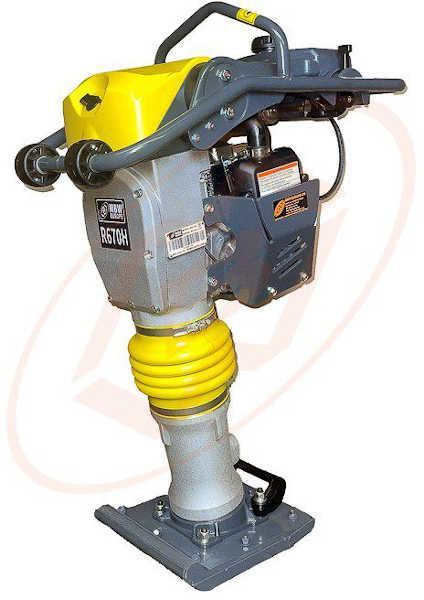

The MBW R670H is a professional-grade trench rammer designed for high-performance compaction in confined spaces. Fitted with the advanced Honda GXR120 engine, this model provides consistent output, fuel efficiency, and durability in challenging site conditions. Its well-balanced design and robust construction make it a reliable choice for contractors working on trenching, utility, and foundation jobs.
Built with operator comfort and serviceability in mind, the R670H features a reinforced bellows system, dual lifting handles, and front-mounted wheels for convenient transport. It includes a high-capacity three-stage air filtration system that protects the engine in dusty environments. Interchangeable tamping shoes allow users to customise the machine for different trench widths, enhancing on-site flexibility.
| Specification | Details |
|---|---|
| Model Number | MBW R670H |
| Engine Model | Honda GXR120 |
| Engine Power | 3.1 HP (2.3 kW) @ 3,600 rpm |
| Operating Weight | 67 kg |
| Shoe Size (W x L) | 280mm x 330mm (interchangeable) |
| Percussion Rate | Up to 640 blows/min |
| Amplitude | 70-85 mm |
| Centrifugal Force | 18 kN |
| Travel Speed | 8-11 metres/min |
| Compaction Area | Up to 149 m²/hr |
| Fuel Consumption | Approx. 1.1 L/hr |
| Optional Accessories | 175mm & 230mm shoes |
The R670H rammer delivers up to 640 high-impact blows per minute with excellent compaction depth, making it highly effective for trench and foundation work. The ergonomic design reduces user fatigue, while built-in wheels and dual handles make transport and handling straightforward. The Honda GXR120 engine ensures long service intervals, low emissions, and quiet operation.
Q: What kind of jobs is the MBW R670H best suited for?
A: The R670H is ideal for trench compaction, confined areas, utility installations, and small foundation work, particularly where space is limited.
Q: What makes the GXR120 engine suitable for rammers?
A: It's specifically engineered for high-vibration applications, with a low-oil alert system and excellent torque for consistent compaction force.
Q: Can the shoe be changed for different trench sizes?
A: Yes, the R670H supports interchangeable shoes in 175mm, 230mm, and 280mm widths, allowing adaptability across job types.
