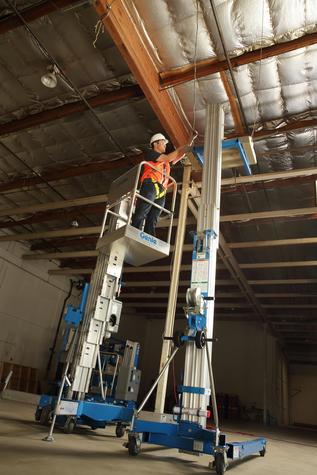

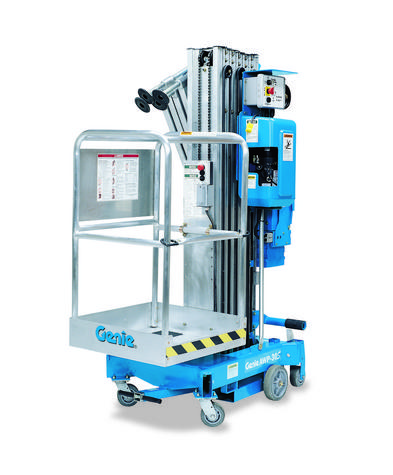

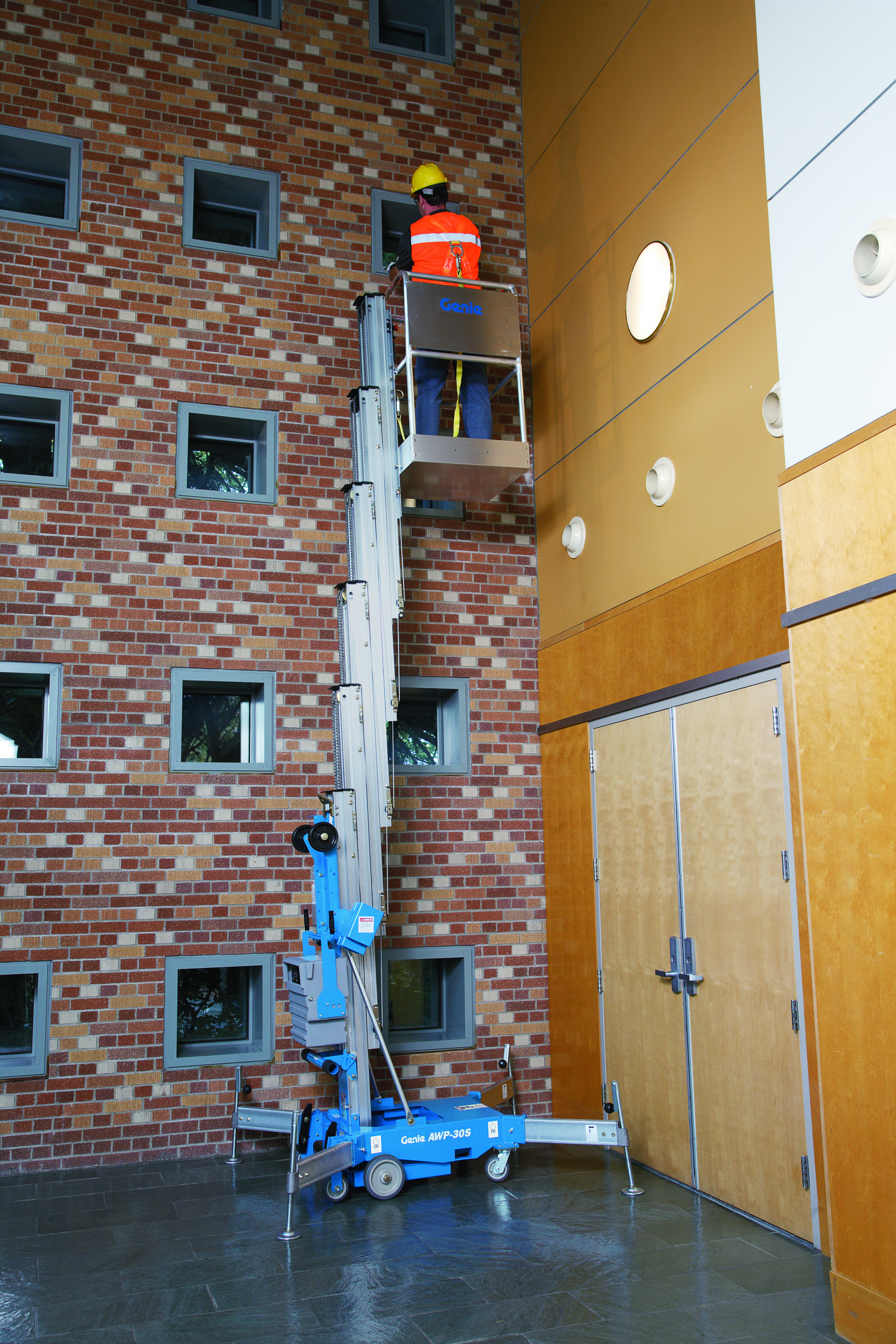

The Genie AWP‑36S DC is a lightweight, battery-powered vertical mast lift offering a maximum working height of 13.10 m (42 ft 5 in). It is ideal for indoor maintenance, facility management, and light construction tasks. With a one-person setup, compact footprint, and quiet operation, it provides a safe and efficient access solution in tight environments.

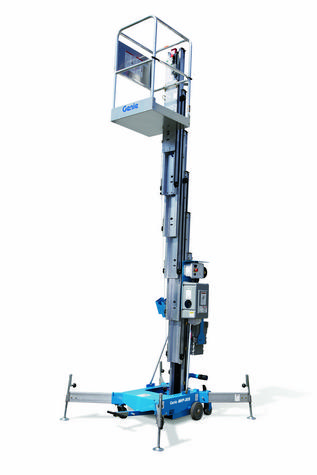

Engineered with high-strength aluminium and Genie's patented rigid mast system, the AWP‑36S DC delivers reliable vertical stability. Its narrow frame allows easy navigation through standard doorways, while the tilt-back frame enables smooth transport and storage. Integrated outriggers offer secure setup even on uneven surfaces.
| Specification | Details |
|---|---|
| Part Number | AWP‑36S DC |
| Working Height | 13.10 m (42 ft 5 in) |
| Platform Height | 11.10 m (36 ft 5 in) |
| Power Source | 12 V DC battery with smart charger |
| Motor Type | Electric (DC) |
| Lift Capacity | 159 kg (350 lb) |
| Weight | 502 kg (1,107 lb) |
| Stowed Height | 2.78 m (9 ft 1.5 in) |
| Width | 0.74 m (2 ft 5 in) |
| Length | 1.40 m (4 ft 7 in) |
| Outrigger Footprint | 2.12 m × 1.91 m (6 ft 11 in × 6 ft 3 in) |
| Wall Access (Front / Side) | 0.36 m / 0.64 m (1 ft 2 in / 2 ft 1 in) |
| Noise Level | < 70 dBA |
| Standards Compliance | EN280, ANSI A92.3, CSA B354.1 |
The Genie AWP‑36S DC is praised for its quiet, smooth vertical lift and compact design. Operators appreciate the ease of positioning and setup, while its zero-emission DC motor makes it ideal for indoor work. The standard tilt-back frame adds versatility for storage and transport without compromising safety or performance.
Q: Is the Genie AWP‑36S DC suitable for indoor use?
A: Yes, it's specifically designed for indoor environments, operating silently and with no emissions.
Q: Can the AWP‑36S DC fit through a standard doorway?

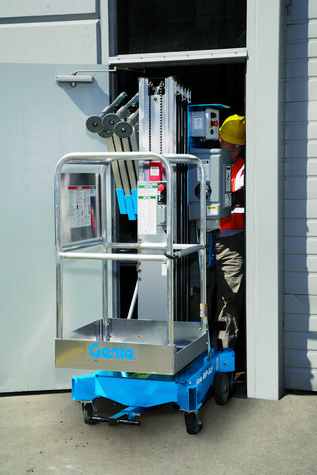

A: Yes, the unit is only 0.74 m wide and includes a tilt-back frame for navigating doorways during transport.
Q: What kind of battery does it use?
A: It uses a 12 V DC deep-cycle battery with an integrated smart charger.
