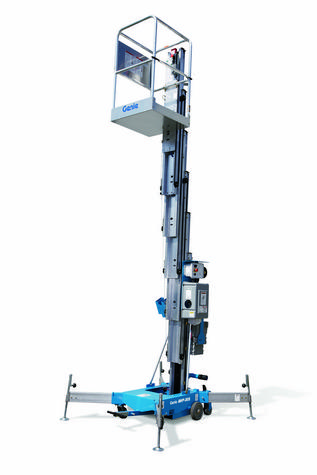

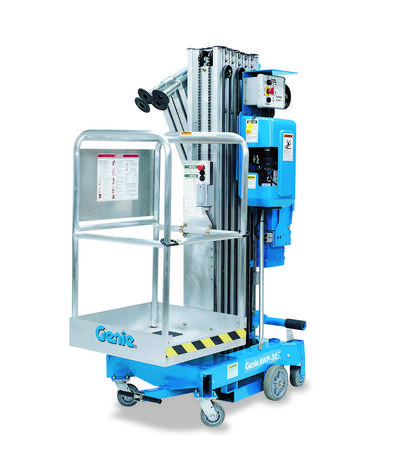

The Genie AWP‑40S DC is a vertical personnel lift designed for high-reach indoor applications. Offering a maximum working height of 14.29 m (46 ft 4 in), this battery-powered platform is ideal for maintenance, facilities management, and light-duty construction. Its narrow frame, smart controls, and tilt-back frame make it easy to deploy, transport, and store, even in space-constrained environments.
Engineered with high-strength aircraft-grade aluminium, the AWP‑40S DC combines lightweight mobility with strong vertical stability. The standard tilt-back frame allows the lift to pass through standard doorways and corridors during transport. The rocker base system and X-pattern outriggers ensure safe and level deployment on uneven surfaces while maintaining a compact footprint.
| Specification | Details |
|---|---|
| Part Number | AWP‑40S DC |
| Working Height | 14.29 m (46 ft 4 in) |
| Platform Height | 12.29 m (40 ft 4 in) |
| Power Source | 12 V DC battery with 110V/230V smart charger |
| Motor Type | Electric (DC) |
| Lift Capacity | 136 kg (300 lb) |
| Weight | 513 kg (1,130 lb) |
| Stowed Height | 2.78 m (9 ft 1.5 in) |
| Width | 0.74 m (2 ft 5 in) |
| Length (tilt-back) | 2.97 m (9 ft 9 in) |
| Outrigger Footprint | 2.26 m × 2.06 m (7 ft 5 in × 6 ft 9 in) |
| Wall Access (Front / Side) | 0.38 m / 0.71 m (1 ft 3 in / 2 ft 4 in) |
| Sound Level | Less than 70 dBA |
| Standards Compliance | ANSI A92.3, CSA B354.1, EN 280, AS 1418.10 |

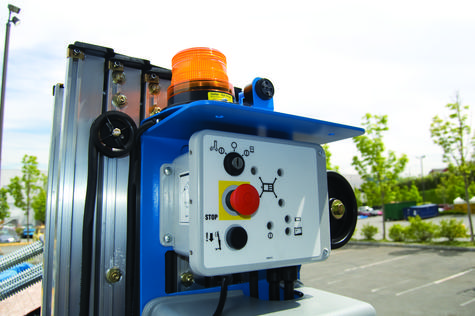

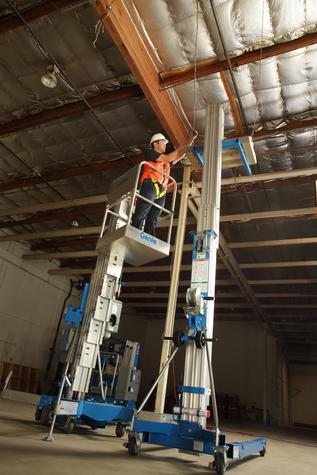

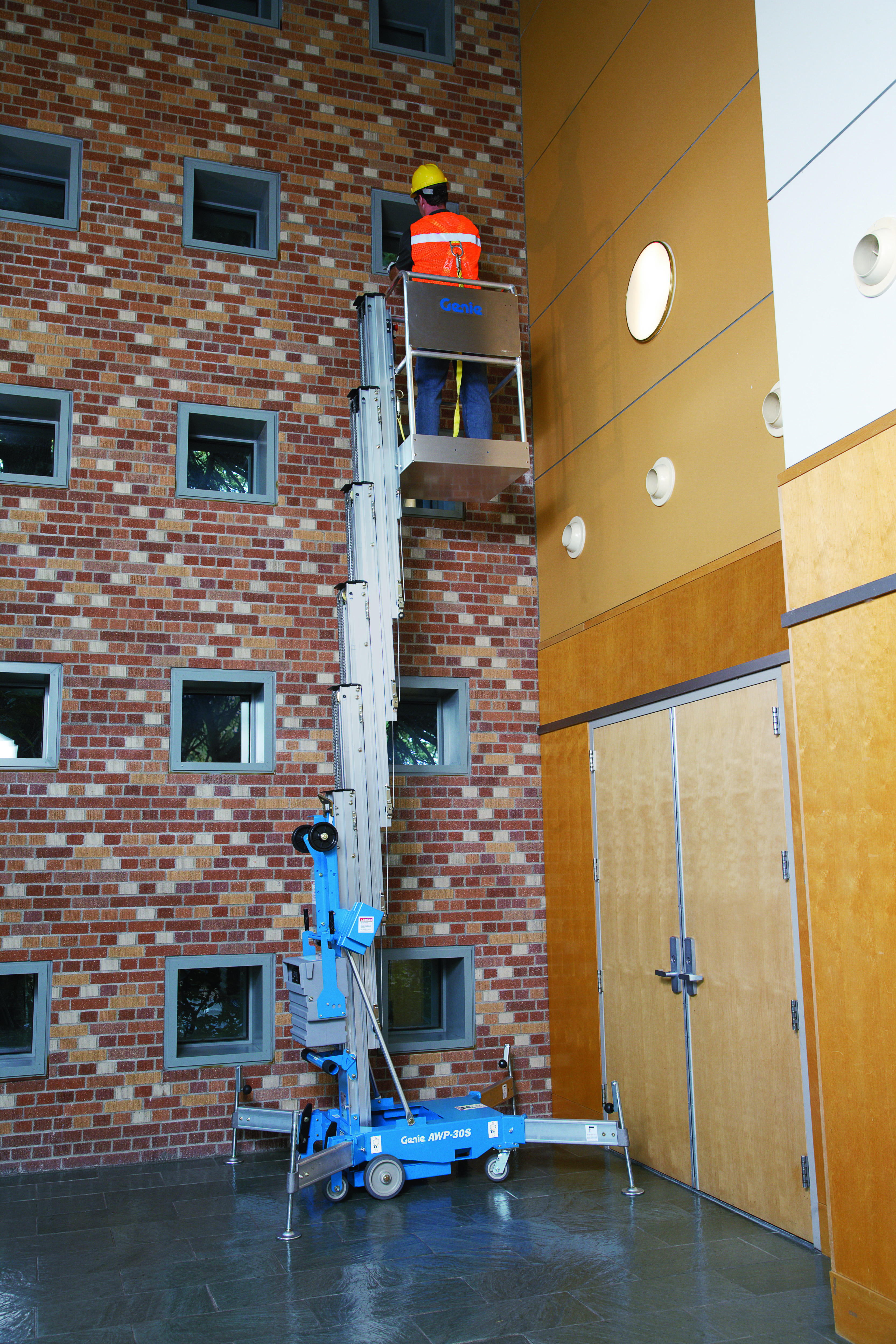

The AWP‑40S DC excels in environments where height and manoeuvrability are equally critical. Its stable mast and quiet electric drive allow operators to reach overhead systems, lighting, and ducts safely and without disrupting operations. Quick setup, intuitive controls, and safe lowering features round out a reliable vertical access solution for demanding facility professionals.
Q: Is the Genie AWP‑40S DC designed for indoor use?
A: Yes, it's battery-powered with low noise and zero emissions, making it ideal for enclosed spaces such as warehouses, schools, and office buildings.
Q: Does it fit through a standard commercial doorway?

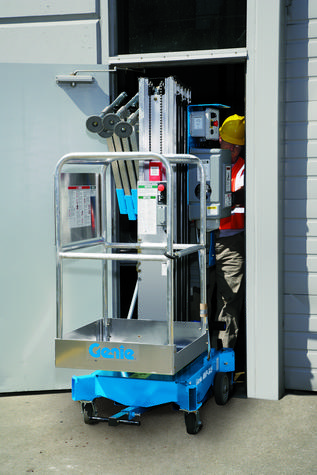

A: Yes, it is 0.74 m wide and includes a tilt-back frame, so it can be transported through typical single-door openings.
Q: What is the platform's weight capacity?
A: The lift supports a platform capacity of 136 kg (300 lb), suitable for one person and tools.
