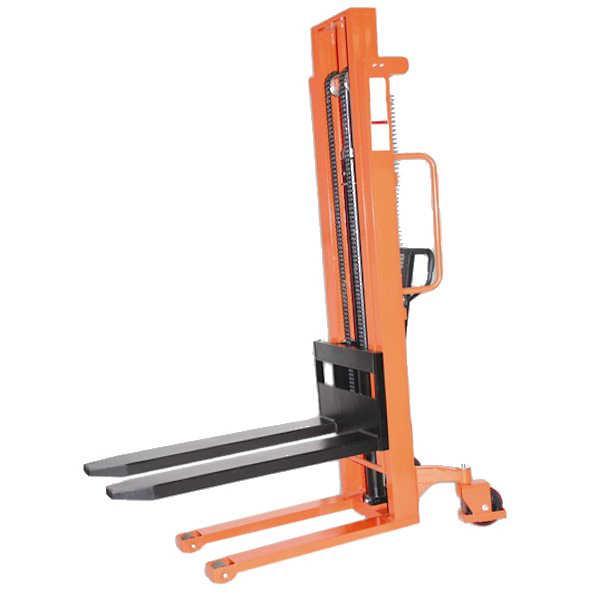

The Warrior WRVFS1016 Manual Stacker is designed for versatile lifting and stacking tasks across warehouses, logistics hubs, and industrial workshops. With a 1000kg load capacity and a 1600mm maximum lift height, this high-quality manual stacker enhances productivity, reduces manual strain, and supports safe material handling.
Manufactured with a durable steel frame and powder-coated finish for corrosion resistance, the WRVFS1016 is engineered for long-term use in demanding environments. The ergonomic handle design and full protective guarding prioritise operator safety. Smooth-rolling nylon castors and a compact chassis ensure easy navigation in tight spaces, even under load.
| Specification | Details |
|---|---|
| Part Number / Model | WRVFS1016 |
| Load Capacity | 1000kg |
| Maximum Lift Height | 1600mm |
| Lowered Fork Height | 85mm |
| Fork Length | 1150mm |
| Fork Width (Adjustable) | 300mm - 800mm |
| Overall Dimensions (L x W x H) | 1448mm x 850mm x 2100mm |
| Ground Clearance | 20mm |
| Front Wheel Size | 74mm x 55mm (Nylon) |
| Rear Wheel Size | 180mm x 50mm (Nylon) |
| Net Weight | 184kg |
| Operation Type | Manual (Hydraulic) |
The Warrior WRVFS1016 excels in confined and mid-volume operational spaces. Operators benefit from a responsive hydraulic lift system and the convenience of a compact turning radius. Whether lifting Euro pallets or custom skids, its adjustable forks and stable chassis ensure both flexibility and security. Ideal for environments where powered stackers are impractical or over-specified.
Q: Can the WRVFS1016 be used with closed-bottom pallets?
A: No, this model is best suited for open-bottom pallets as it does not include straddle legs or fork-over design elements required for closed pallets.
Q: Is the lifting mechanism foot or hand-operated?
A: The unit uses a foot-operated hydraulic pump to raise the forks and a hand lever for controlled descent.
Q: What safety features are included?
A: Safety enhancements include foot guards, wheel brakes, full guarding around the mast, and tandem lift chains to prevent tipping or imbalance during elevation.
