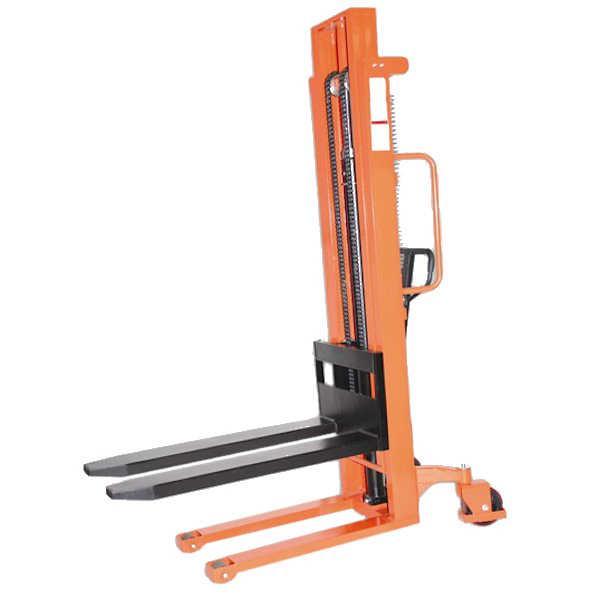

The Warrior WRVFS1030 Manual Stacker is a robust and versatile solution for lifting and stacking applications in warehouses, workshops, and industrial settings. Designed to handle loads up to 1000kg, it offers a maximum lift height of 3000mm, making it ideal for high-stacking tasks. Its manual operation ensures reliability and ease of use without the need for electrical power.
Constructed with high-quality steel, the WRVFS1030 features a strong, welded frame designed for long-term durability in demanding environments. The manual hydraulic system is engineered for smooth operation, and the compact chassis design allows for easy manoeuvrability in narrow aisles. Nylon steering wheels and tandem front load rollers provide quiet, low-resistance movement across warehouse flooring.
| Specification | Details |
|---|---|
| Part/Model Number | WRVFS1030 |
| Load Capacity | 1000kg at 500mm Load Centre |
| Maximum Lift Height | 3000mm |
| Lowered Fork Height | 85mm |
| Fork Length | 1150mm |
| Adjustable Fork Width | 300mm - 740mm |
| Overall Length | 1496mm |
| Overall Width | 800mm |
| Overall Height | 2060mm |
| Ground Clearance | 23mm |
| Steer Wheels | 180mm x 50mm (Polyurethane) |
| Load Rollers | 74mm x 70mm (Polyurethane) |
| Weight | 332kg |
The WRVFS1030 provides dependable manual lifting performance with minimal effort thanks to its hydraulic lift mechanism. Its ergonomic controls and compact chassis allow for easy operation even in narrow warehouse aisles. Adjustable forks and safety features make it a practical choice for material handling professionals requiring reliability and flexibility in daily operations.
Q: Is the WRVFS1030 suitable for Euro pallets?
A: Yes, the adjustable fork width supports standard Euro pallet sizes with ease.
Q: Does the stacker require any electrical power to operate?
A: No, the WRVFS1030 is fully manual and does not require electricity or batteries.
Q: Can it be used on uneven surfaces?
A: It is best suited for smooth warehouse floors; uneven terrain may affect stability.
Q: Is the lifting operation noisy?
A: No, the hydraulic system and polyurethane wheels provide smooth, quiet operation.
Q: What type of maintenance does it require?
A: Regular visual inspections and lubrication of moving parts are sufficient for maintenance.
