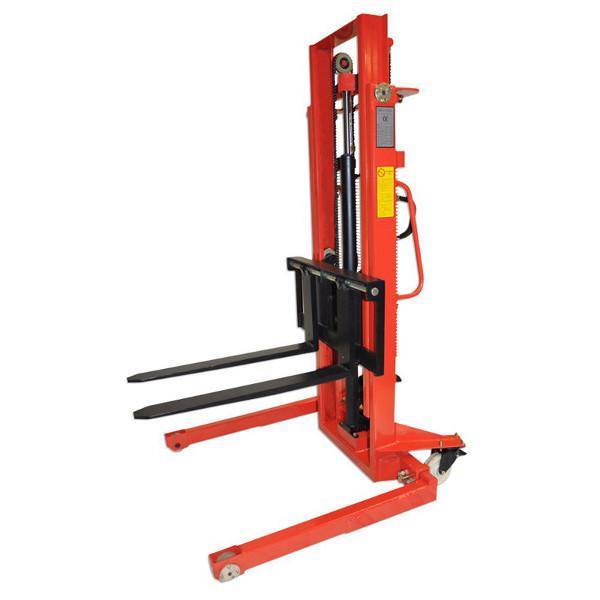

The Warrior WRMSS1025 Manual Straddle Stacker is a versatile, heavy-duty lifting solution designed for demanding industrial environments. Offering a maximum lift height of 2500mm and a 1000kg capacity, it is ideal for stacking both open and closed-bottom pallets, including full-perimeter "Chep-style" designs. This manual stacker is perfect for warehouses, production areas, and logistics facilities where reliable and precise manual handling is required.
Constructed from reinforced steel, the WRMSS1025 delivers long-term durability and strength. Its wide straddle legs allow for clearance around closed-bottom pallets, and its robust hydraulic pump system ensures consistent lift performance. Ergonomic control handles and foot-operated braking improve ease of use and safety. Polyurethane wheels and tandem load rollers allow for smooth, quiet rolling on industrial floors while resisting wear and damage.
| Specification | Details |
|---|---|
| Model Number | WRMSS1025 |
| Load Capacity | 1000kg |
| Maximum Lift Height | 2500mm |
| Lowered Fork Height | 75mm |
| Fork Length | 1150mm |
| Adjustable Fork Width | 210mm - 800mm |
| Inside Straddle Width | 1240mm |
| Overall Width | 1080mm - 1360mm (adjustable) |
| Overall Length | 1480mm |
| Overall Height | 1770mm (mast retracted) |
| Turning Radius | 1650mm |
| Wheels | Nylon with polyurethane coating (low-noise, durable) |
| Net Weight | 360kg |
The WRMSS1025 excels in tight warehouse spaces where flexibility, stability, and safe handling are essential. Its ergonomic controls, foot-operated brake, and wide straddle base allow for intuitive operation and easy pallet entry. Manual lifting ensures no dependence on batteries or power, ideal for locations where electrical handling equipment is impractical. The stacker's versatility makes it a popular choice for businesses looking for a reliable and cost-effective alternative to electric models.
Q: Can this stacker handle UK blue "Chep-style" pallets?
A: Yes, its wide straddle legs are specifically designed to lift perimeter-based pallets including "Chep" pallets.
Q: Is the lifting mechanism electric or manual?
A: The WRMSS1025 operates via a manually pumped hydraulic system -- no battery or motor required.
Q: Can I adjust the width between the forks?
A: Yes, the fork width is manually adjustable from 210mm to 800mm for pallet compatibility.
Q: What type of maintenance does the stacker require?
A: Routine checks on hydraulic fluid, wheel integrity, and general lubrication will ensure longevity and performance.
Q: What flooring is best suited for use with this stacker?
A: It is optimised for use on smooth, flat industrial floors such as concrete or resin-coated surfaces.
