Product Information

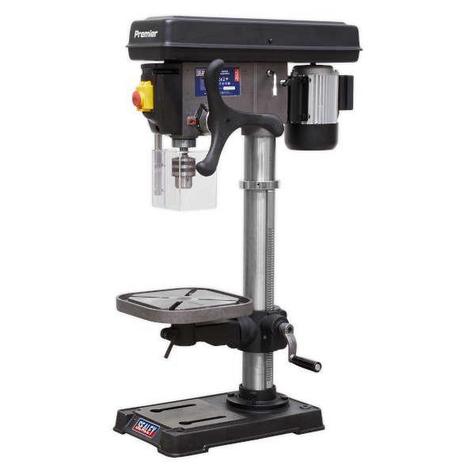

Pillar Drill Bench 16-Speed 1070mm Height 650W/230V

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Meets Safety of Machinery (Safety) Regulations 1992 (and amendments).
• Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments.
• Models GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachments are available for all models GDM120B - GDM200F inclusive.

Specifications

• Make: Sealey
• Model No.: GDM150B
• Drilling Capacity (Chuck Size): 16mm
• Spindle Nose Taper: MT2
• Swing: 436mm
• Spindle Centre to Column: 178mm
• Spindle Travel: 80mm
• Number of Speeds: 16
• Speed Range: 120-3000rpm
• Maximum Distance Spindle to Table: 480mm
• Maximum Distance Spindle to Base: 670mm
• Working Table Surface Size: Ø310mm
• Working Base Surface Size: 205 x 205mm
• Overall Base Size: 440 x 260mm
• Column Diameter: 80mm
• Collar Diameter: 60mm
• Overall Height: 1070mm
• Motor Power: 450W - 230V
• Input Power: 650W - 230V
• Weight: 68kg
• Optional Keyless Chuck 16mm: GDMX/KC
• For Warranty see: Sealey Warranties
• Standard delivery:2-3 days

Instructions
