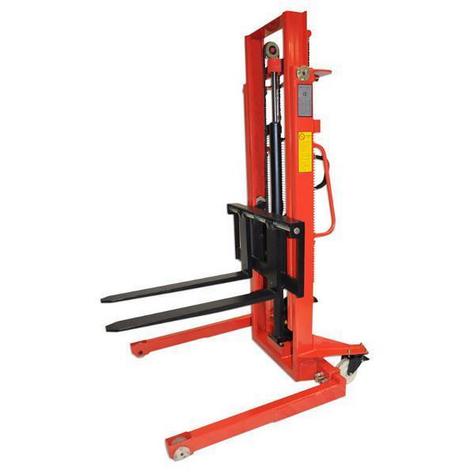

The Warrior WRMSS1016 Manual Straddle Stacker is a heavy-duty material handling solution, engineered for applications where closed-bottom pallets or perimeter-based pallet types are in use. Designed for lifting up to 1000kg with a maximum fork height of 1600mm, this stacker is perfect for loading and unloading pallets, stacking in racking systems, and general warehouse operations.
Manufactured from high-grade steel with a reinforced mast and welded construction, the WRMSS1016 offers long-lasting durability and performance. Its straddle leg base ensures compatibility with a wider range of pallets, including closed-bottom Chep-style pallets. The hydraulic pump system is smooth and reliable, while the stacker's compact footprint and ergonomic design enhance usability in confined spaces.
| Specification | Details |
|---|---|
| Model Number | EP ESA121-D |
| Load Capacity | 1000kg |
| Maximum Lift Height | 1600mm |
| Lowered Fork Height | 75mm |
| Fork Length | 1150mm |
| Adjustable Fork Width | 210mm - 800mm |
| Inside Straddle Width | 1240mm |
| Overall Width | 1080mm - 1360mm |
| Overall Length | 1580mm |
| Overall Height | 2020mm |
| Turning Radius | 1250mm |
| Wheels | Nylon with polyurethane coating |
| Net Weight | 325kg |
The WRMSS1016 provides operators with smooth, precise load handling for a wide range of warehouse operations. Its manual hydraulic pump system ensures controlled lifting without the need for electrical input, making it ideal for facilities with limited power access. The wide straddle legs, robust steel frame, and advanced safety features make it a reliable and user-friendly option for professionals seeking dependable pallet stacking capabilities.
Q: Can this stacker handle full-perimeter pallets like Chep?
A: Yes, the straddle leg design provides 1240mm internal width, making it ideal for Chep-style and closed-bottom pallets.
Q: Does it require any external power or batteries?
A: No, it is completely manual and operated via a hydraulic foot pump system.
Q: Can the forks be adjusted for non-standard pallet sizes?
A: Yes, the forks are manually adjustable from 210mm to 800mm to suit different load types.
Q: What is the minimum turning radius of the WRMSS1016?
A: It has a turning radius of approximately 1250mm, allowing for use in tight aisles and confined areas.
Q: What maintenance does this stacker require?
A: Basic maintenance includes regular lubrication of moving parts, periodic checks of hydraulic fluid, and inspection of wheel wear.
